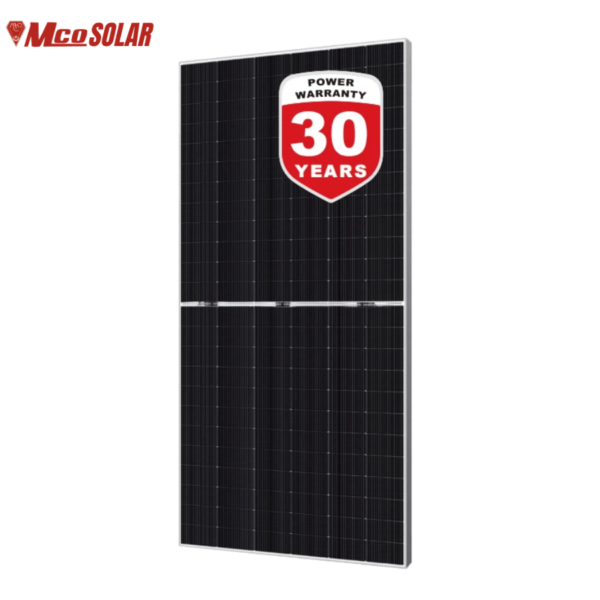

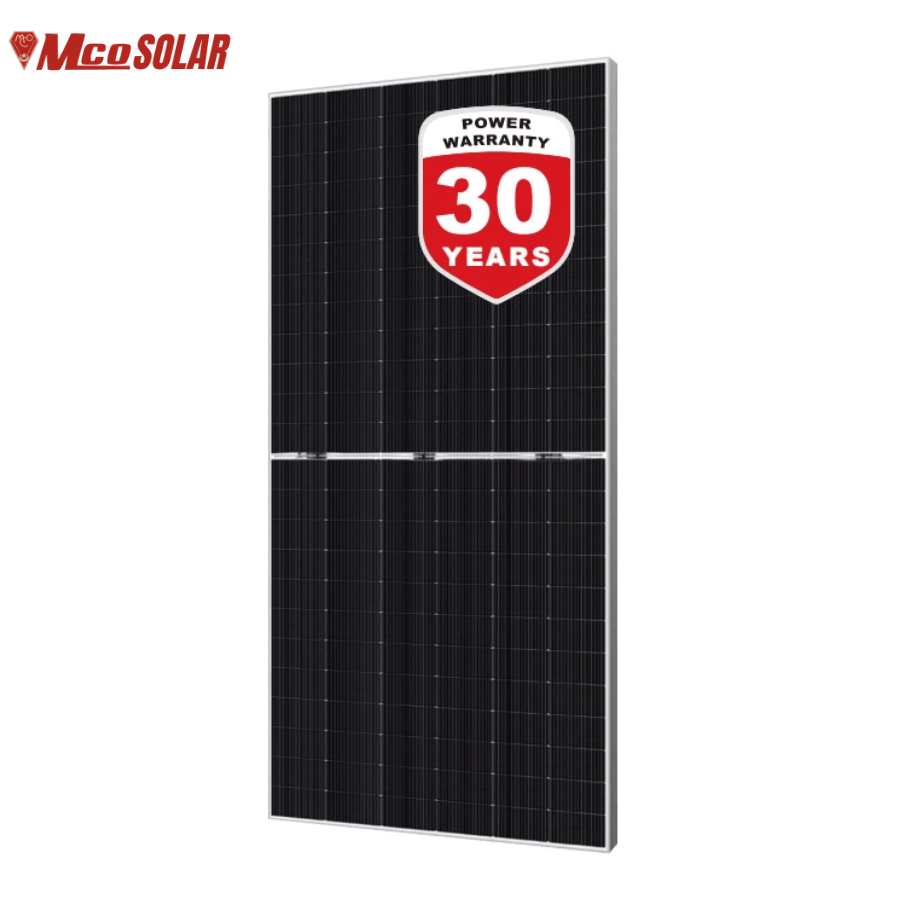

610W Bifacial Solar Panel
/ lb
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Mechanical Data Of 610 Watt bifacial Solar Panel
| Model NO. |
N144RL10
|
|
Dimensions
|
2382x1134x30mm
|
| Glass | (F) 2.0mm ultra clear embossed double layer colorless glass (B) 2.0mm semi-tempered glass |
| Output cables | 4mm², symmetrical lengths 1300mm |
| Connectors | MC4 compatible IP68 |
| Cell Type |
N type Mono-Crystalline,182.2mmx95.8mm
|
| Frame | Aluminum, White and Black Options |
| Number of cells | 144cells(Half-Cell) |
| Transport Package | Carton Box with Wooden Pallet |
| Trademark | SUNPRO POWER |
| HS Code | 8541402000 |
| Grade | A Grade |
| Origin | China |
Electrical Specifications
Under Standard Testing Condition (STC): AM=1.5, Irradiation 1000W/m², Cell Temperature 25
| Max. Power (Pmax) | 610 |
| Max. Power Voltage (Vmp) | 44.14 |
| Max. Power Current (Imp) | 13.82 |
| Open Circuit Voltage (Voc) | 51.94 |
| Short Circuit Current (Isc) | 14.71 |
| Module Efficiency | 22.56% |
| Max. System Voltage | DC 1500V (TÜV,UL) |
| Max. Series Fuse Rating | 30A |
