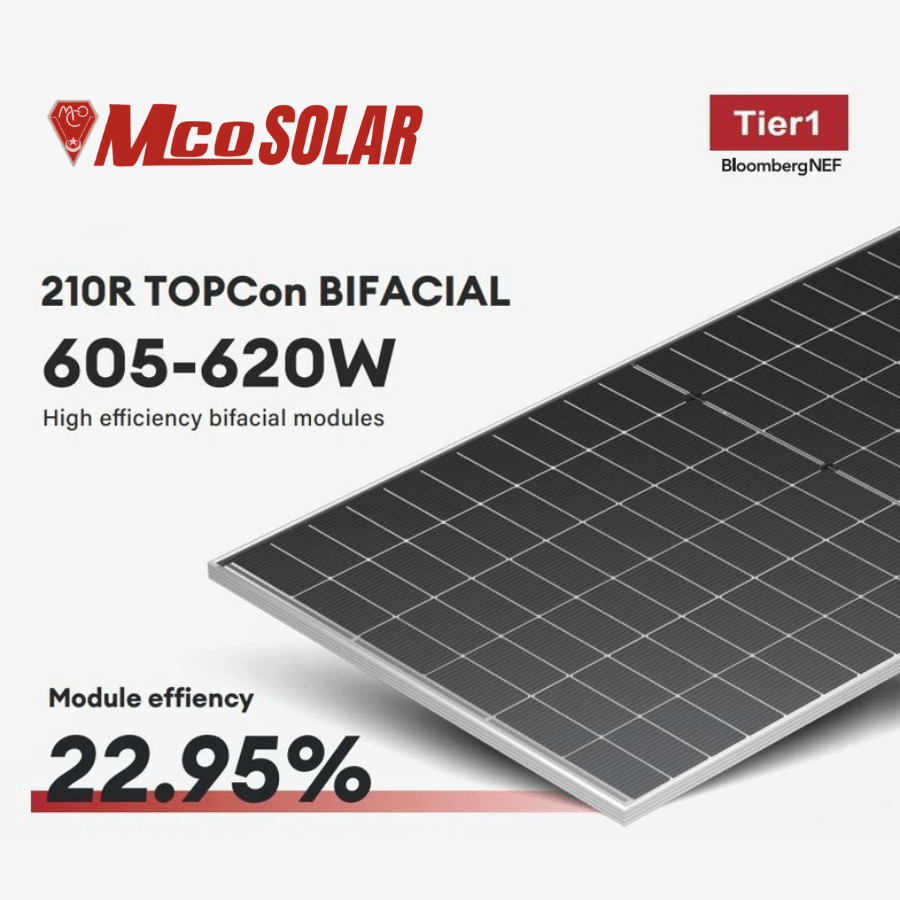

620W HIGH EFFICIENCY 210R BIFACIAL SOLAR PANEL
/ lb
MCO Solar Power newest product:SPDG620-N132R12 High Efficiency 22.95% bifacial solar panel Snow load 5400Pa / Wind load 2400Pa 25-Year quality guarantee | 30-Year power warranty
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
PRODUCT DESCRIPTION
| Typical Type | 620W |
| Max Power(Pmax) | 620 |
| Max Power Voltage(Vmp) | 41.2 |
| Max Power Current(Imp) | 15.05 |
| Open Circuit Voltage(Voc) | 49.25 |
| Short Circuit Current(Isc) | 15.92 |
| Module Efficiency(%) | 22.95 |
| Max System Voltage | DC 1500V(TÜV) |
| Maximum Series Fuse Rating | 30A |
MECHANICAL DATA
| Dimensions | 2382x1134x30 mm |
| Weight | 33.7 kg |
| Glass | (F)2.0 mm ultra clear embossed double layer colorless glass
(B)2.0 mm white mesh glazed tempered glass |
| Output cables | 4mm², symmetrical lengths 1300mm |
| Connectors | MC4 compatible IP68 |
| Cell type | N type Mono-Crystalline , 182.2mmx105mm |
| Number of cells | 132 cells ( Half-cut Cell ) |

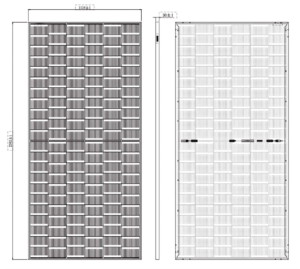

DIMENTION AND STRUCTURE

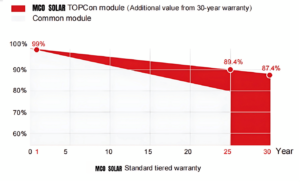

WARRANTY
TESTS AND CERTIFICATES
| Standard tests | IEC 61215, IEC 61730, IEC 61701,
IEC 62716, PPP 58042B |
| System certs | ISO 9001, ISO14001, ISO45001, ISO18001, SA8000 |
| Certifications | TUV, CE, WEEE |
| Extreme wind and
snow loads testing |
Withstand extreme Wind(2400 Pascal)
Snow loads(5400 Pascal) |
| Power tolerance | 0~+5W |
| Junction box | IP 68 |
PACKING CONFIGURATION
| Container type | 40’HQ |
| Pieces / pallet | 36 pcs |
| Pallets / container | 20 pallets |
| Pieces / container | 720 pcs |
